MEDICAL PSA OXYGEN PLANT EXPORTER

Oxygen Plant Exporter, We are engaged in manufacturing and supplying PSA plants for our clients spread worldwide. PSA oxygen generator uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle.

Under certain pressure, zeolite molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more nitrogen adsorption capacity than oxygen adsorption capacity.

Our PSA oxygen plants has the purity of 93- 95% suitable for medical consumption capacities ranging from 5m3/hr to 90m3/hr

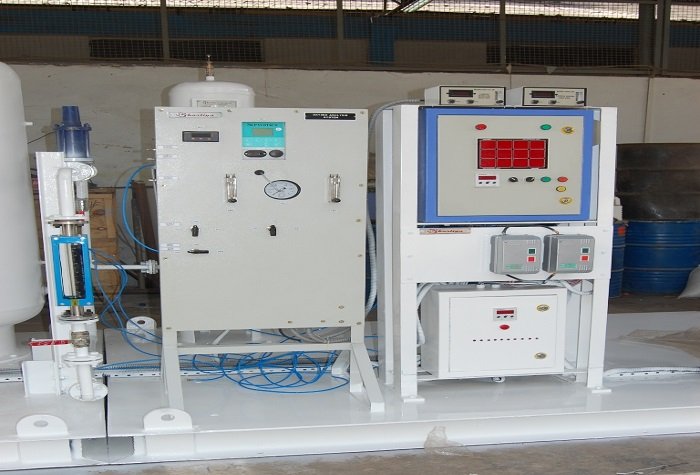

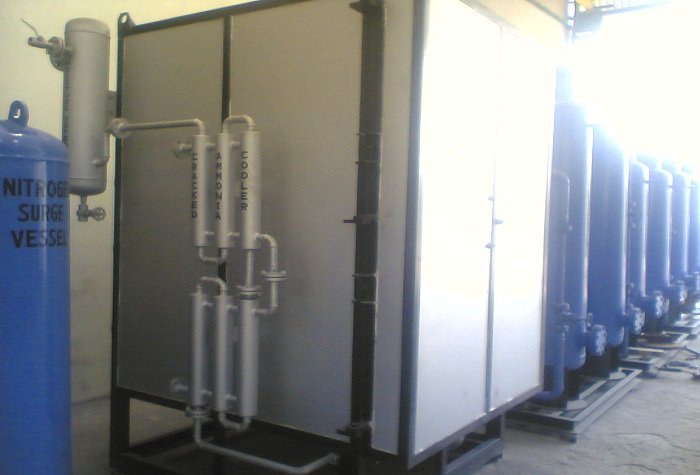

Medical PSA Oxygen Plants

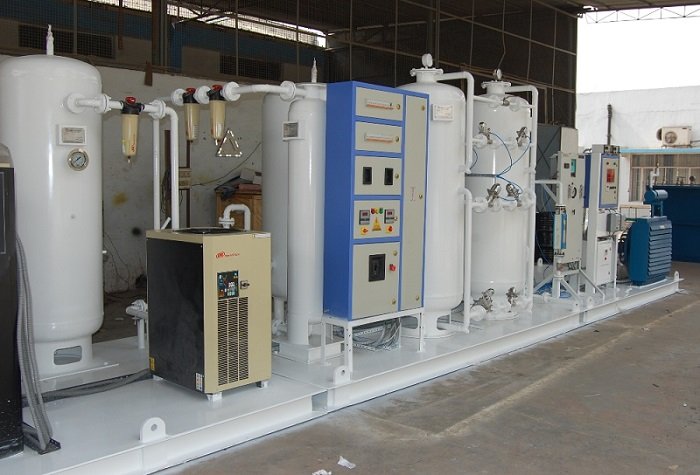

Medical PSA Oxygen Plants 2

Medical PSA Oxygen Plants 3

Medical PSA Oxygen Plants 4

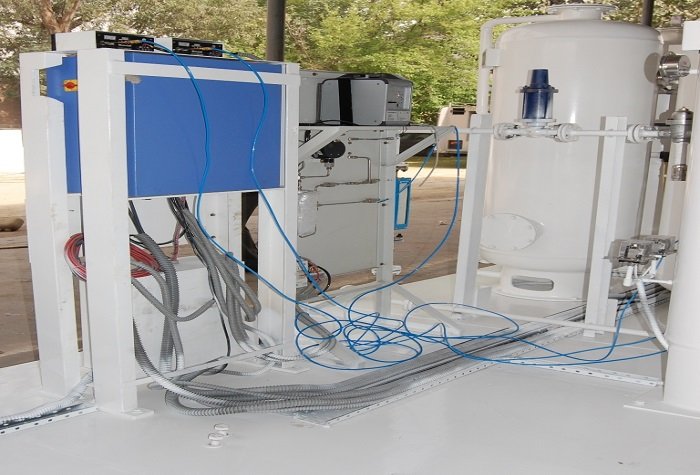

Medical PSA Oxygen Plants 5

Medical PSA Oxygen Plants 6

OXYGEN PLANT EXPORTER SALIENT FEATURES OF OUR GAS PLANT

All Pressure Vessels shall be fabricated at our Workshop and strictly designed as per ASME SEC VIII DIV.I codes & international standards.
All bought-out Equipments / Instruments shall be of reputed make.
Our Plant does not require dedicated operator for running the Gas Plant, only period check–up is required.
Low capital investment and low operational cost compared to cylinders.
We shall be using Single stage Filtration system before PSA Towers.
The Carbon Molecular sieves is of Latest Grade Takeda, Japan / Carbotech, Germany make & extra quantity of CMS ensures satisfactory plant performance over many years.
The Total operation of PSA Valves is done by programmable PLC.
Our On - line percentage Oxygen Analyzer shall have Imported sensor(Citi, U.K.)

OXYGEN PLANT EXPORTER AIR COMPRESSOR & AFTER COOLER

Oxygen Plant Exporter , The Air Compressor compresses air upto 7.5 Bar and is cooled to ambient temperature in a shell and tube type heat exchanger . Compressor is unloaded by a mechanical unloader fitted on compressor at 7 Bar. To kill the pulsation in bottle is installed just near to compressor which also reduces the vibration in discharge line.

One High Pressure Switch is provided at Compressor’s discharge line to trip the compressor at 8.0 Bar pressure in case the unloader fails. For extra safety of discharge pressure one safety valve is provided at discharge line which will blow at 8.5 Bar discharge pressure. We shall supply Oil Filters before Air Receiver

OXYGEN PLANT EXPORTER AIR RECEIVER

This serves as a buffer vessel / small storage for compressed air for continuous feed of air to the system. This also kills the pressure pulsation and supply air at almost constant pressure. Here moisture is also drain out by Auto Drain from the bottom.

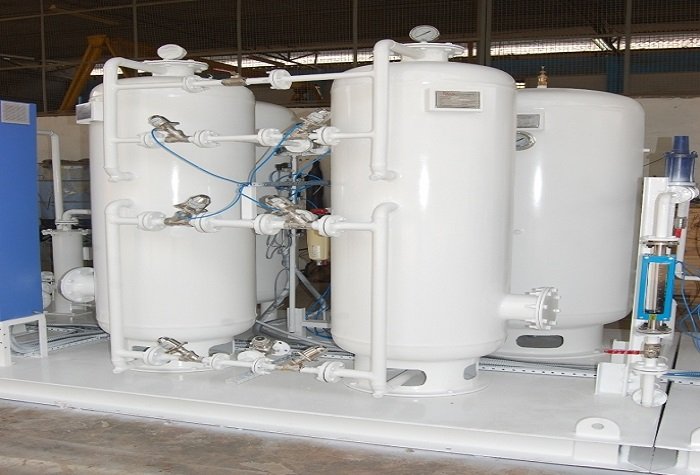

OXYGEN PLANT EXPORTER PSA UNIT

There are two towers filled with a special grade Carbon Molecular Sieves (CMS) to adsorb O2 & CO2 present in the air . At the bottom of each tower M.S. perforated plate with 10mm dia.

Hole and SS wire mesh is welded to hold the CMS filled in the tower. Just above the plate, the ceramic balls are put to act as a holding bed for CMS .The Carbon Molecular Sieves is being filled up to the straight portion at the top of tower.

The perforated plate facing the bottom or the cover is the supporting element while the adsorbent is prevented from flowing out by the wire mesh. A 50 mm thick Coconut fiber mat is packed as the cover to fix the adsorbing bed . The upper perforated plate compresses adsorbent fill to avoid undesired void.

The coconut fiber mat is squeezed together when the cover is tightened.

Oxygen Plant Exporter , Cycle time of PSA Unit is 1 + 1 Minute .Each tower has air inlet valves (VI & V2) bottom , gas outlet valves (V7 & V8) at top and exhaust outlet valves (V3 & V4) at the bottom. Besides these, a valve V6 is for pressure equalization at the top and a valve V5 after exhaust valves (V3 & V4) at the bottom. The air inlet line from air receiver has 1 No. globe valve V9 to control the flow of air so that the max. pressure in the adsorbing towers goes to 7.5 Kg/cm2 G.

OXYGEN PLANT EXPORTER SURGE VESSEL

Oxygen Plant Exporter, from PSA Module will have varying purity depending upon the pressure in the adsorber during the one minute cycle time. This vessel gives product Oxygen at constant pressure with constant average gas purity.

For analyzing the O2 percentage in the Nitrogen gas, one needle valve for sampling is provide over this vessel . One pressure gauge is also provided on the vessel .In Surge tank , One NRV is fitted in reverse direction through which some of N2 gas goes back to PSA towers after the equalization cycle , so that there is drop of 0.2 to 0.3 Barg pressure of surge tank.

This gas decrease the time required for the pressure rise in PSA towers , which leads to more production time , and better purity of Nitrogen Gas Middle vent valve is provided through which the Nitrogen is vented until the Oxygen content comes down to 1% at Surge Tank.

OXYGEN PLANT EXPORTER RAW OXYGEN FLOW METER

Rotameter is provided at the outlet of Oxygen Surge Vessel to check the quantity of Oxygen flow drawn from PSA system.

OXYGEN PLANT EXPORTER PERCENTAGE OXYGEN ANALYSER

To monitor oxygen Percent level at outlet a digital on-line oxygen analyzer is installed.

OXYGEN PLANT EXPORTER BACK PRESSURE CONTROLLER & THREE WAY VALVE

The back pressure controller is installed in outlet line after the N2 Surge Vessel, when the inlet pressure signal exceed the spring setting, the outlet port of BPC will open and in case this pressure goes down, it will close the outlet port.

Oxygen Plant Exporter, This would always maintain 5.0 Barg pressure in the Surge Vessel . The setting of back pressure controller can be changed by adjusting the bolt provided at the top. Three-way vent valve is a pneumatically operated 3-way valve. With no compressed air signal , its bottom port is open to atmosphere.

Thus when the gas generator is started the gas initially of low purity will go to atmosphere through this 3-way valve. This valve close its bottom port when it gets compressed air through solenoid valve and then Nitrogen gas starts going to Suction Pot.

The solenoid valve will get energized when the vent push –button is pressed after checking the quality of product gas for some time. In case of any abnormality in the plant, the control valve will open automatically and the gas will be vented to atmosphere.

OXYGEN PLANT EXPORTER STORAGE VESSEL

Oxygen Plant Exporter, storage vessel is provided for storing nitrogen gas at 5.5 Kg/cm2 G pressure. This serves as a buffer stock for Oxygen Gas in emergency in case of break down in the plant or power failure. One no pressure switch is installed on it to open the final vent valve in case of high pressure.

OXYGEN PLANT EXPORTER" PSA MEDICAL OXYGEN GENERATORS

Model	Capacity	LPM	Purity	No of Hospital Beds
BPO-5	5m3	85LPM	93	12
BPO-6	6m3	100LPM	93+3%	16
BPO-8	8m3	135LPM	93+3%	22
BPO-10	10m3	165LPM	93+3%	25
BPO-15	15m3	250LPM	93+3%	42
BPO-20	20m3	330LPM	93+3%	55
BPO-25	25m3	400LPM	93+3%	67
BPO-30	30m3	500LPM	93+3%	84
BPO-35	35m3	600LPM	93+3%	100
BPO-40	40m3	670LPM	93+3%	112
BPO-50	50m3	850LPM	93+3%	125
BPO-60	60m3	1000LPM	93+3%	167
BPO-90	90m3	1500LPM	93+3%	250

OXYGEN PLANT EXPORTER SCOPE OF SUPPLY

Air Compressor, Electric motor & starter Panel with filters.

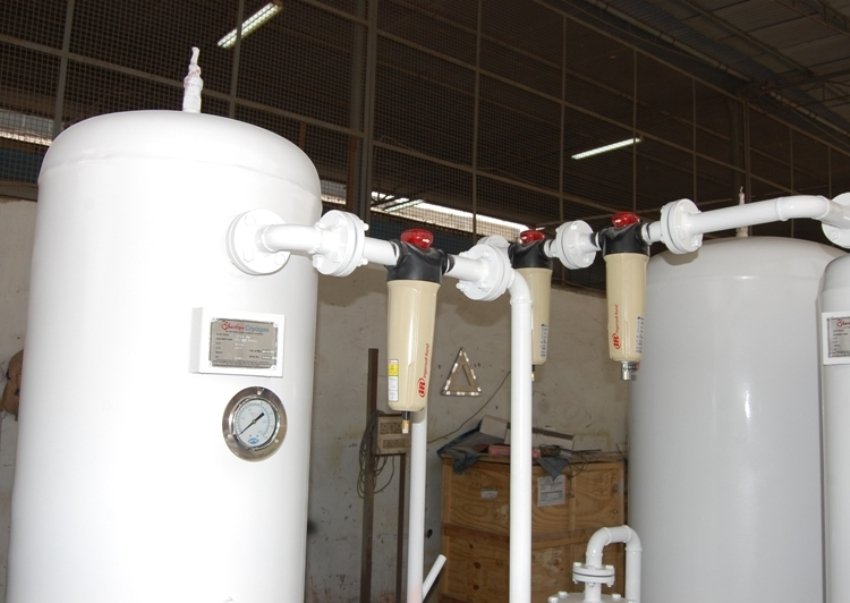

3-Stage Filtration system
Twin tower Packaged PSA Unit filled with first charge of Activated Alumina & Carbon Molecular Sieves with automatic change over valves and sequence Programmer
Air Receiver with Safety Valves, Pressure switch and Auto Drain Trap.
Oxygen Surge Vessel to stabilize purity & Flow.
On line percentage Oxygen Analyzer with 2 years sensor life .
Control Panel with PLC & audio Visual Alarm.
3-Way vent valve and Pressure Holding Valve after PSA Unit.
Oxygen Storage Tank.
All interconnected piping and fittings.
2-Coat of Primer and 2-Coat of Epoxy paint on all fabricated items.
